Network builds

Racks built for the network you run

  • Fiber
  • Ethernet
  • Twisted pair
  • Coax

READYVIEW / CLOUD MANAGEMENT

Every site. Every switch.
One ReadyView.

Fiber, Ethernet, twisted pair, or coax. Bring the networks you have into one management platform — with visibility from the property down to the port.

ReadyViewYOUR NETWORKS. ONE PERSPECTIVE.
Architectural illustration of office, hotel, and residential properties

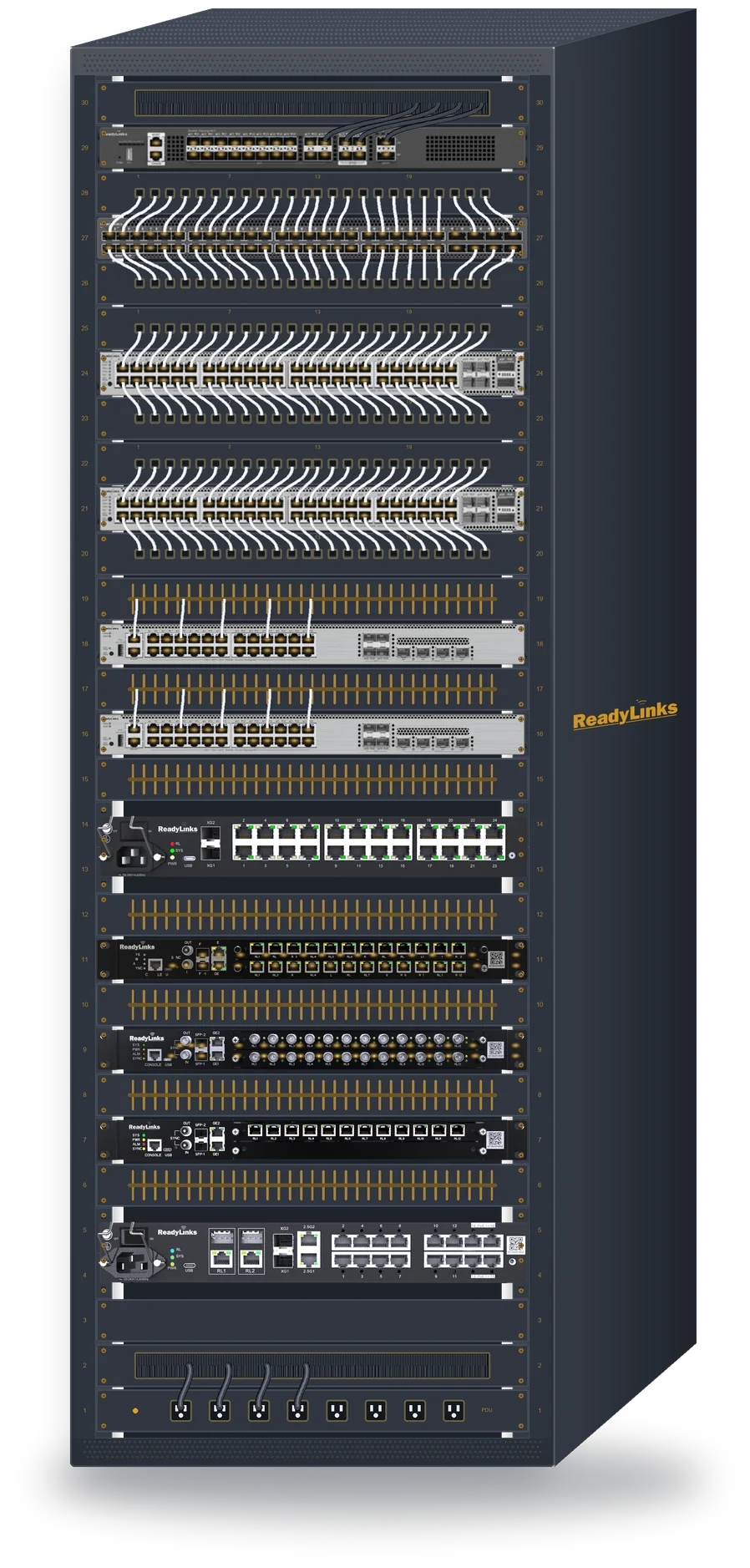

ReadyLinks cabinet at a fiber-connected propertyFiber

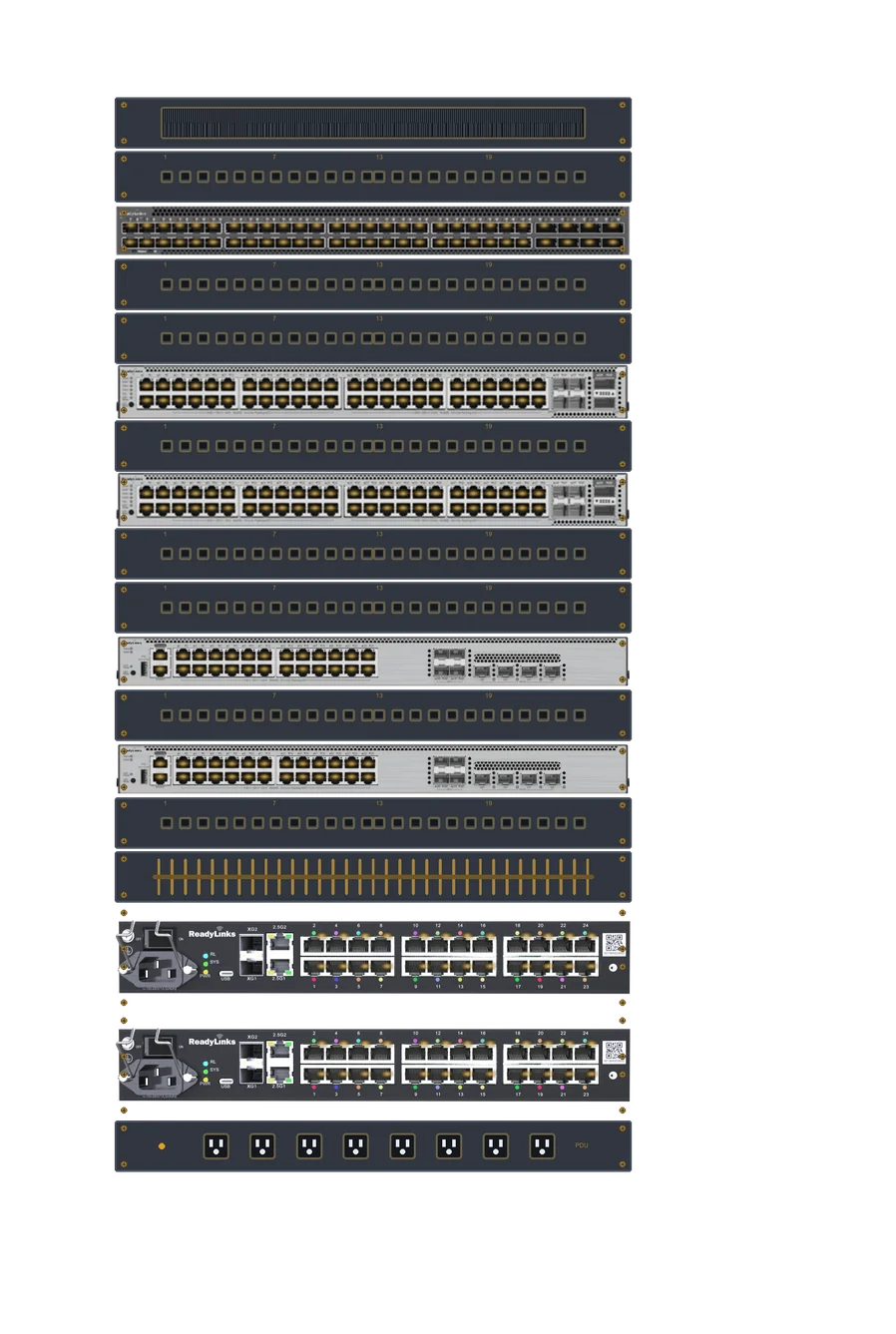

ReadyLinks cabinet at an Ethernet-connected propertyEthernet
ReadyLinks cabinet at a property with twisted-pair wiringTwisted pair
ReadyLinks cabinet at a coax-connected propertyCoax

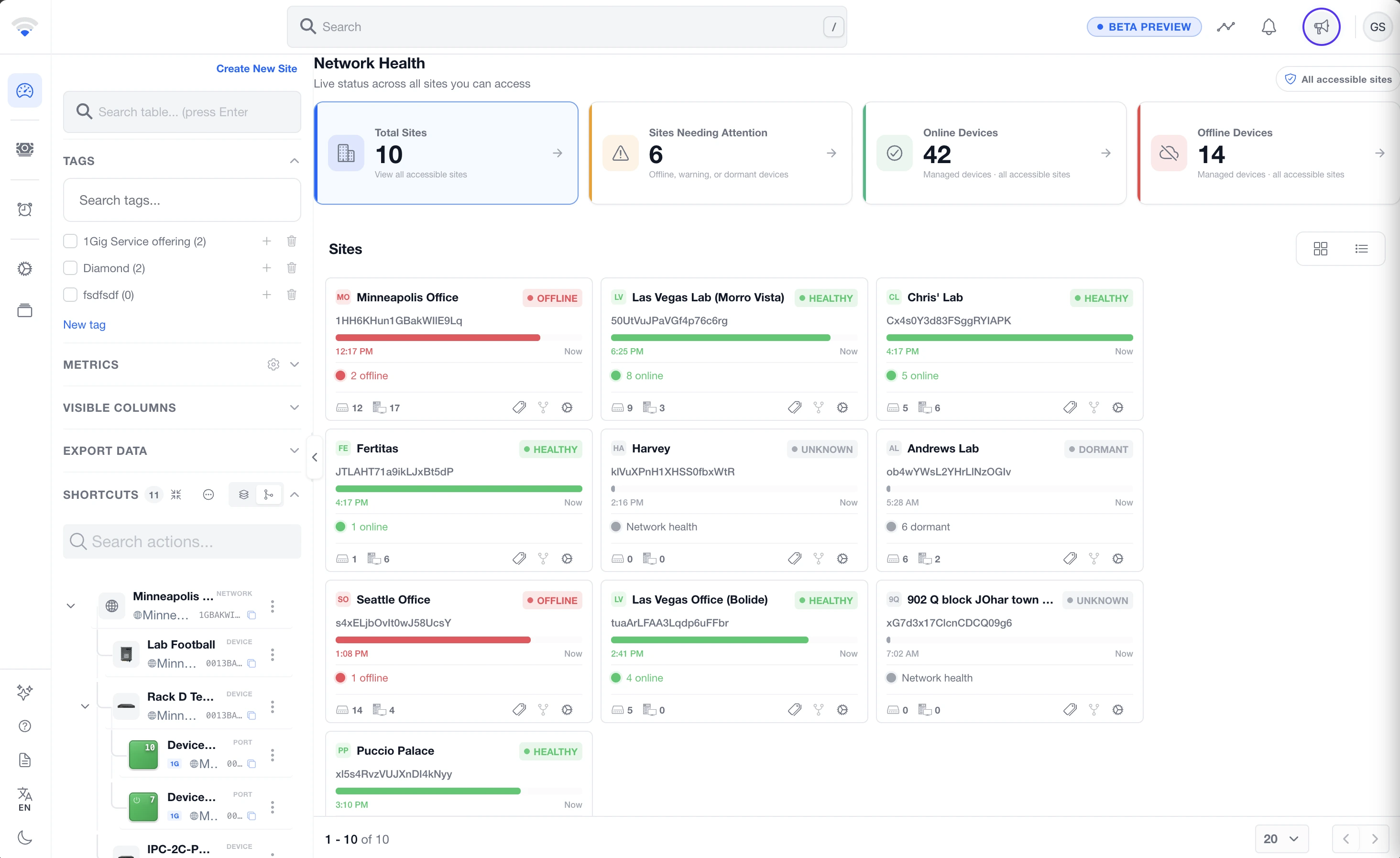

ReadyView Network Health showing multiple sites, site health, and online and offline devices
ReadyView Multi-site management

Separate networks. Shared visibility. Manage your sites together without treating them as one physical LAN.

EXPLORE READYVIEWTalk to an engineer

What each cabinet is for

A ReadyLinks network mixes media by building, not by preference: fiber where there is fiber, Ethernet where there is structured cabling, and ReadyLink over whatever coax or telephone pair is already in the walls.

Ethernet

EX-48 and EX-24 for closets with structured cabling: 10G to every port, 802.3bt power for Wi-Fi 7 and cameras, 25G and 40G uplinks. The fanless GL-24xEP+ takes the edge.

EX series →

Fiber

The core and the risers. CX-48 at the core with 25G ports and 100G uplinks, stacking to eight units; AX-24 for aggregation with 10G and 25G down and 40G up.

Fiber core →

Coax

ReadyLink over the coax in the wall. F-connector head-ends (GL-12xC, GL-6xC) serve up to 16 in-room clients per port; BNC head-ends (GL-24xB, GL-12xB) give each legacy camera run its own 1.8 Gbps port with power.

GL head-ends →

Twisted pair

ReadyLink over telephone pair. The GL-24xT takes 24 pairs, point-to-point, 1.8 Gbps to each client with PoE at the far end, in 520 W and 240 W builds.

GL-24xT →
