This guide provides instruction on how to install and configure your GLx series switch. This guide also provides mounting instructions and limited troubleshooting procedures. For more switch installation guides, refer to the switch installation guides section on our documentation website.

Physical Specifications

Product View and Physical Features

Front Panel

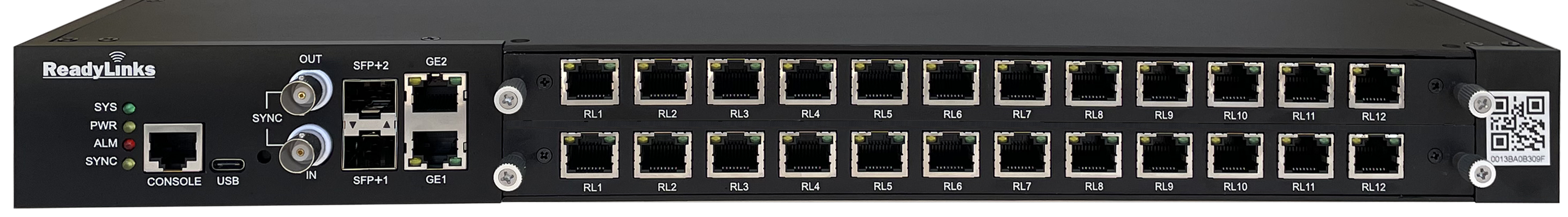

GL-24xT-P600D

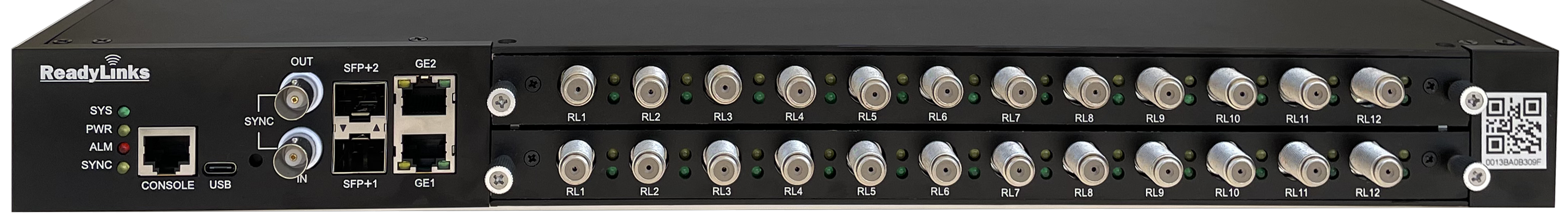

GL-24xC-P600D

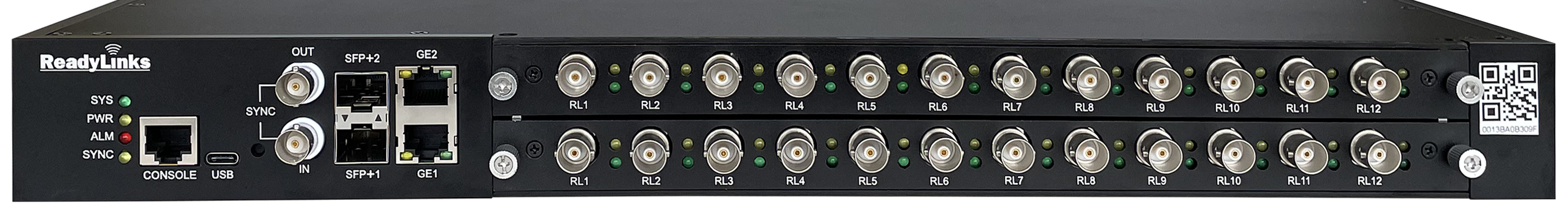

GL-24xB-P600D

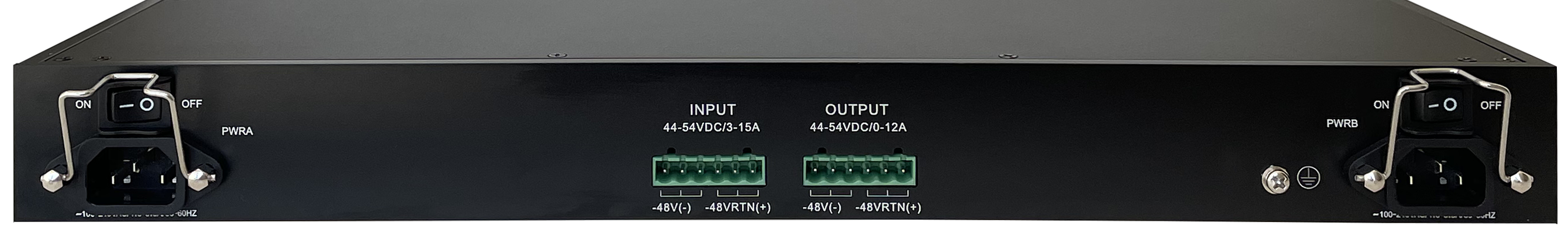

Back Panel

Factory reset button

If the button is pressed and held for at least ten seconds and then released, the switch will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit.

Port and Status LEDs

Package contents

• 1U rack wings & screws
• BNC sync cable
• 2 * AC power cords
• Rack screws

Pre-Install Preparation

You should complete the following steps before going on-site to perform an installation.

Configure your dashboard network

1. Login to https://ui.readylinks.io. If this is your first time, create a new account.
2. Claim your switches. You will need your ReadyLinks mac address (found on the device) which looks like 0013xxxxxxxx.
3. Find the network to which you plan to add your switches or create a new network.
4. Go to the map view and place each switch on the map by clicking and dragging it to the location where you plan to mount it.

Check and configure firewall

If a firewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most current list of outbound ports and IP addresses for your particular organization can be found on the firewall configuration page in your dashboard.

Installation Instructions

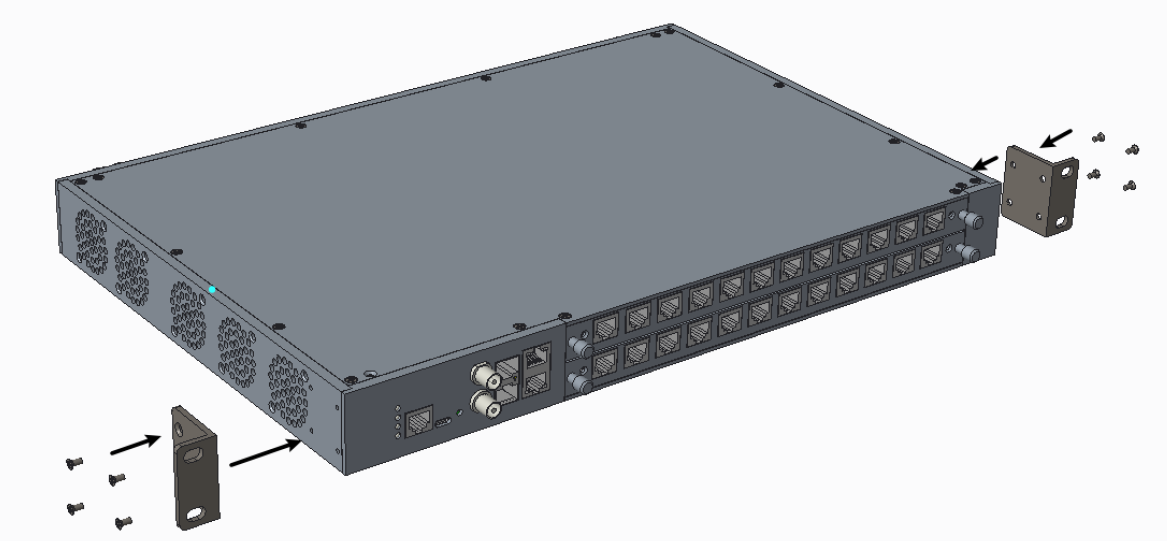

1. Fix the brackets on the side of the device using 8 * M3 flat head screws.

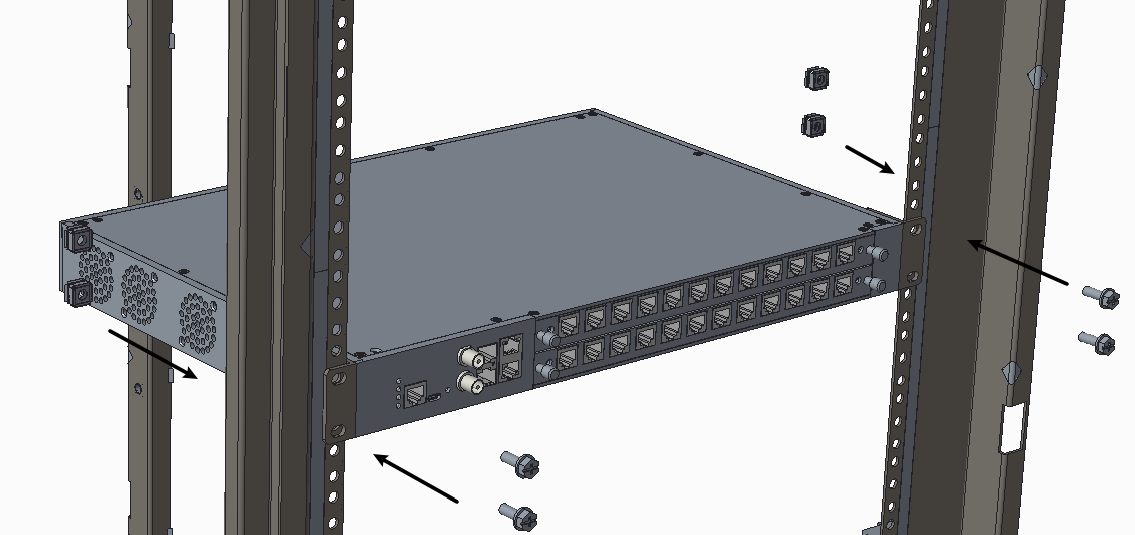

2. Install the GLx chassis in a 19" rack with M6 screws and nuts.

3. Connect the power supply to the unit.

Wiring instructions

Refer to the twisted pair or coax wiring instruction guide for details on how to connect your ReadyLink devices.

Mounting hardware

The mounting hardware includes a rack mount kit for standard 1U racks. When installing the device, make sure that there is sufficient space between the rear of the rack and other obstacles to ensure adequate airflow.

Basic Troubleshooting

The following steps can be used for troubleshooting basic connectivity issues with your switch.

• Reset the switch
• Factory reset the switch by holding the factory reset button for 10 seconds
• Try switching cables, or testing your cable on another device

Warranty
