Firewall rules for cloud connectivity

The ReadyView dashboard provides centralized management, optimization, and monitoring of ReadyLinks devices. In order to manage a ReadyLinks device through the dashboard, it must be able to communicate with the ReadyLinks cloud over a secure tunnel. This tunnel is created between ReadyLinks devices and the dashboard to pass management and reporting traffic in both directions.

Because the dashboard is located on the public internet, the tunnel is always initiated outbound from the managed device. Once a connection is established, the device maintains the connection by occasionally sending packets and receiving a response. When a firewall or gateway exists in the data path between the managed device and the dashboard, certain protocols and port numbers must be permitted outbound through the firewall for the secure tunnel to function.

#Addresses and ports to allow

ReadyLinks resolves to rlicloud.com and cloud.readylinks.io, utilizing encrypted HTTPS port 443. Fundamentally, ReadyLinks needs to be able to resolve time (NTP), domain name service (DNS), and utilize encrypted traffic implementations on port 443 (SSL).

Devices also report telemetry and receive control messages over MQTT. This connection is made outbound to mqtt.readylinks.io on TCP port 8883 (MQTT over TLS), so that port must be permitted alongside 443.

#Example firewall configuration

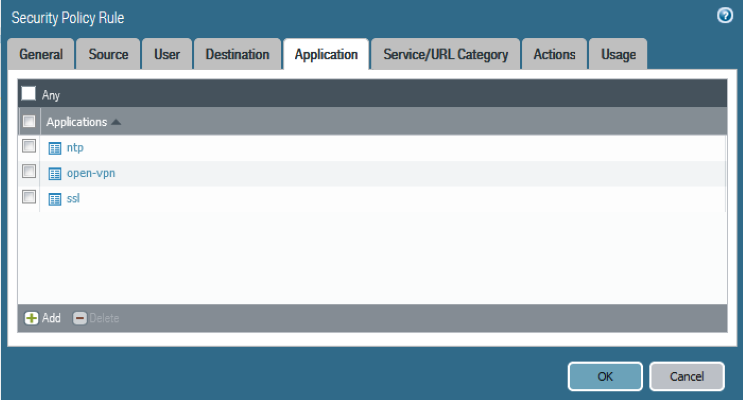

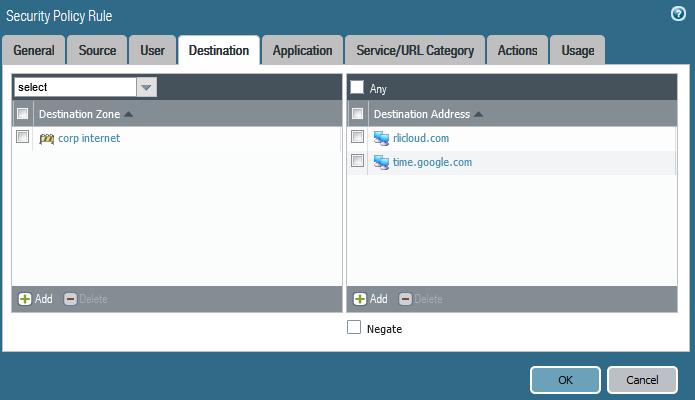

The screenshots below show an example firewall configuration permitting this traffic.

#Connection tests

ReadyLinks devices can run tests to determine the uplink status.

#Verify device configurations via CLI

• Run show vlan interface to verify management IP address information.
• Run show dns to verify DNS information.
• Run show sntp to verify SNTP (time) settings.

#Check ReadyView connection status via CLI

• Run show readyview connection all.
