IPC-1 series
The IPC-1 series (IPC-1T and IPC-1C) is ReadyLinks' most compact client. Hardware configuration, models, backbox installation and default configuration.
ReadyLinks' most compact client, the IPC-1 series revolutionizes infrastructure upgrades. IPC-1 clients are managed via the ReadyView dashboard and support the common IPC feature set.
#Models
| IPC-1T | IPC-1C | |
|---|---|---|
| Cable medium | Twisted pair | Coax |

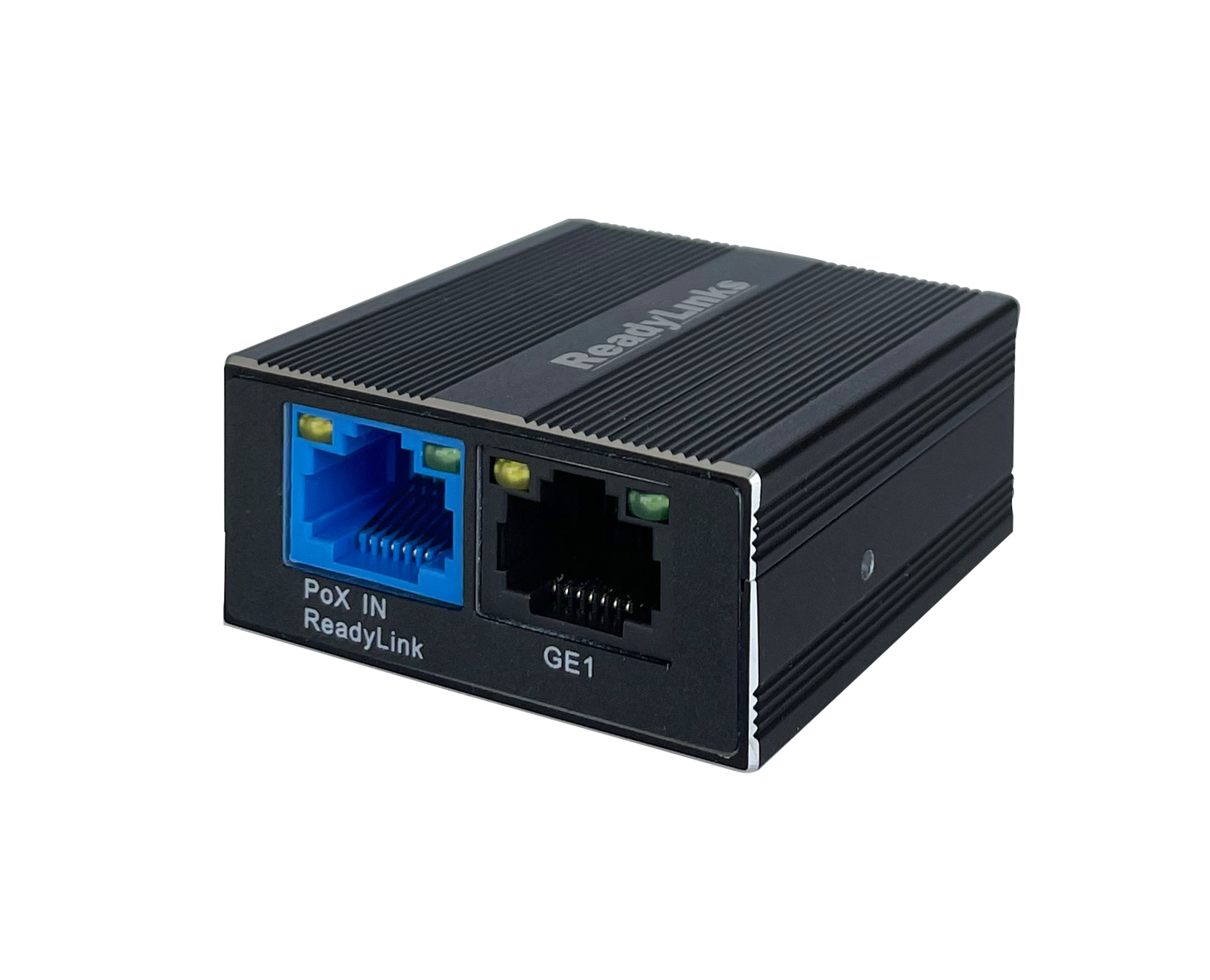

| ReadyLink port | RJ45 | Coax (F) |
| 1GbE RJ45 | 1 | 1 |
| PoE/PoE+ options | PoE passthrough | PoE passthrough |
| Mount type | Backbox, desktop | Backbox, desktop |
| Applications | Hospitality, Enterprise, ISPs | Hospitality, Enterprise, ISPs |
#Hardware configuration
| IPC-1 | |
|---|---|
| Interfaces | 1 x 2G ITU-T G.hn IEEE 802.3at PoE+ PD RJ45 or F connector; 1 x 10M/100M/1G RJ45 Ethernet |
| Power | 1 x 2G ITU-T G.hn IEEE 802.3at PoE+ PD RJ45 or F connector |
| Power consumption | 3W |
| Dimensions | 1.9”(L) x 1.8”(W) x .86”(H) |
| Operating temperature | 14 ~ 131 °F |
| Cooling | Fanless heatsink |
#ReadyLink ports
- Fast Fourier Transform (FFT) Orthogonal Frequency-Division Multiplexing (OFDM) in 2-200MHz offers 2Gbps bit rate and PoE+ over 2-4 conductors.
- LDPC, FEC line condition adaptive
- ~40dB of attenuation in the frequency range 4-200MHz
#Installation

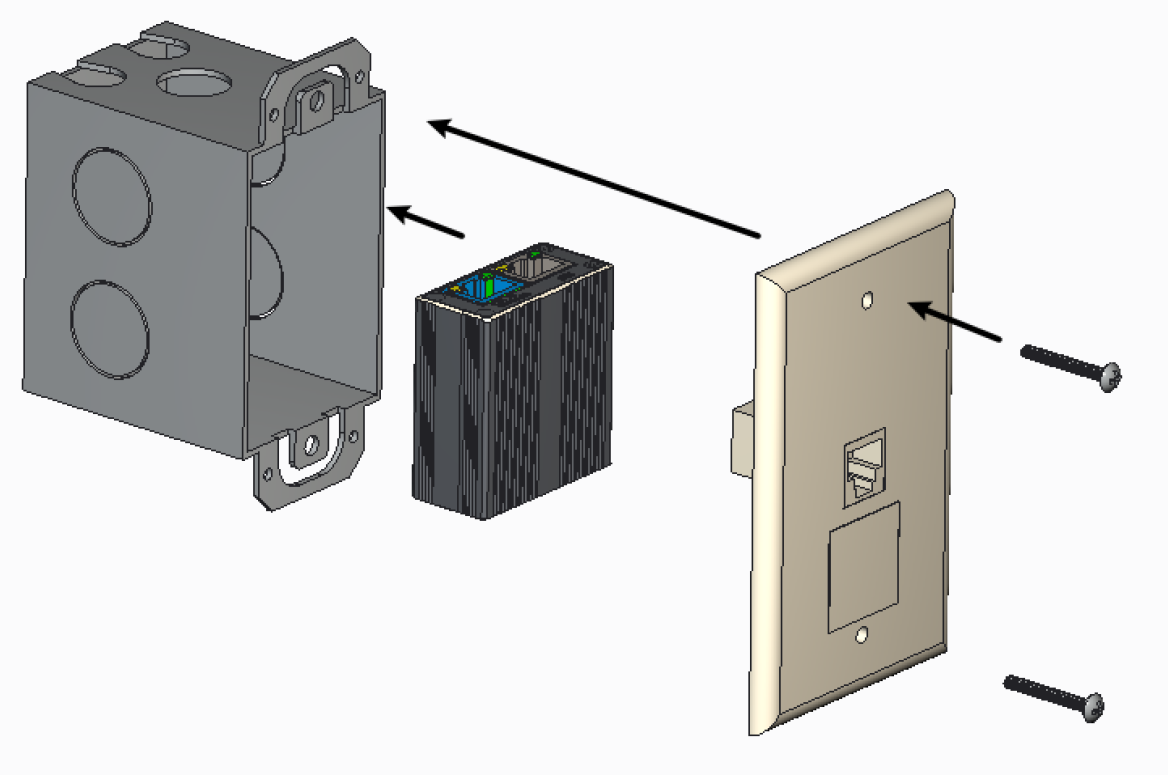

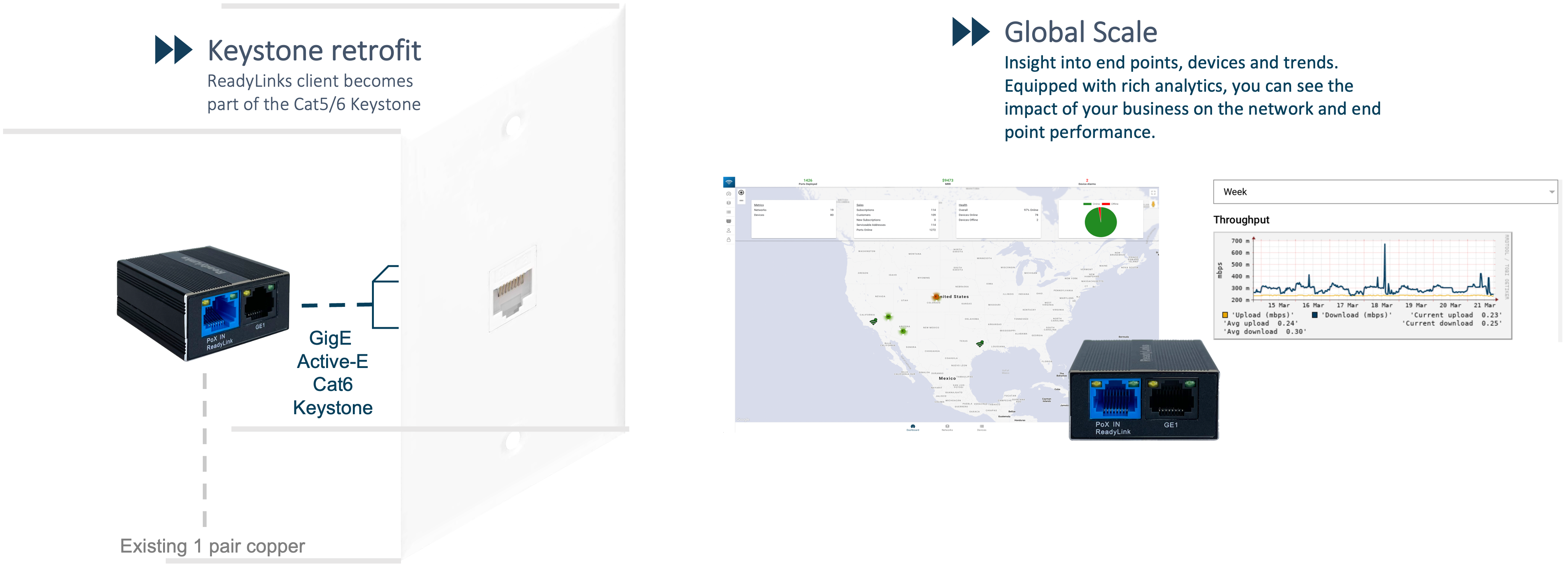

The IPC-1 can be retrofitted into an existing wall outlet: the client becomes part of a Cat5/6 keystone, using existing one-pair copper, and is installed into the electrical backbox behind the wall plate.
For the recommended staging process before installation, see Deployment and staging in the IPC clients guide.
#Configuration
By default, the IPC-1 acts as a transparent bridge, simply passing traffic to and from the connected ReadyLink switchport. However, each IPC-1 is capable of advanced switching capabilities such as VLAN tagging, IGMP snooping, rate limits, etc.
