IPC-4S series
The IPC-4S series (IPC-4STP and IPC-4SBNC) enables IoT and IP surveillance deployments with 4S electric box retrofits and PoE+ at the edge. Models, hardware configuration and default configuration.
ReadyLinks IPC-4S series enables IoT deployments with 4S electric box retrofits and PoE+ at the edge. IPC-4S clients are managed via the ReadyView dashboard and support the common IPC feature set.
#Models

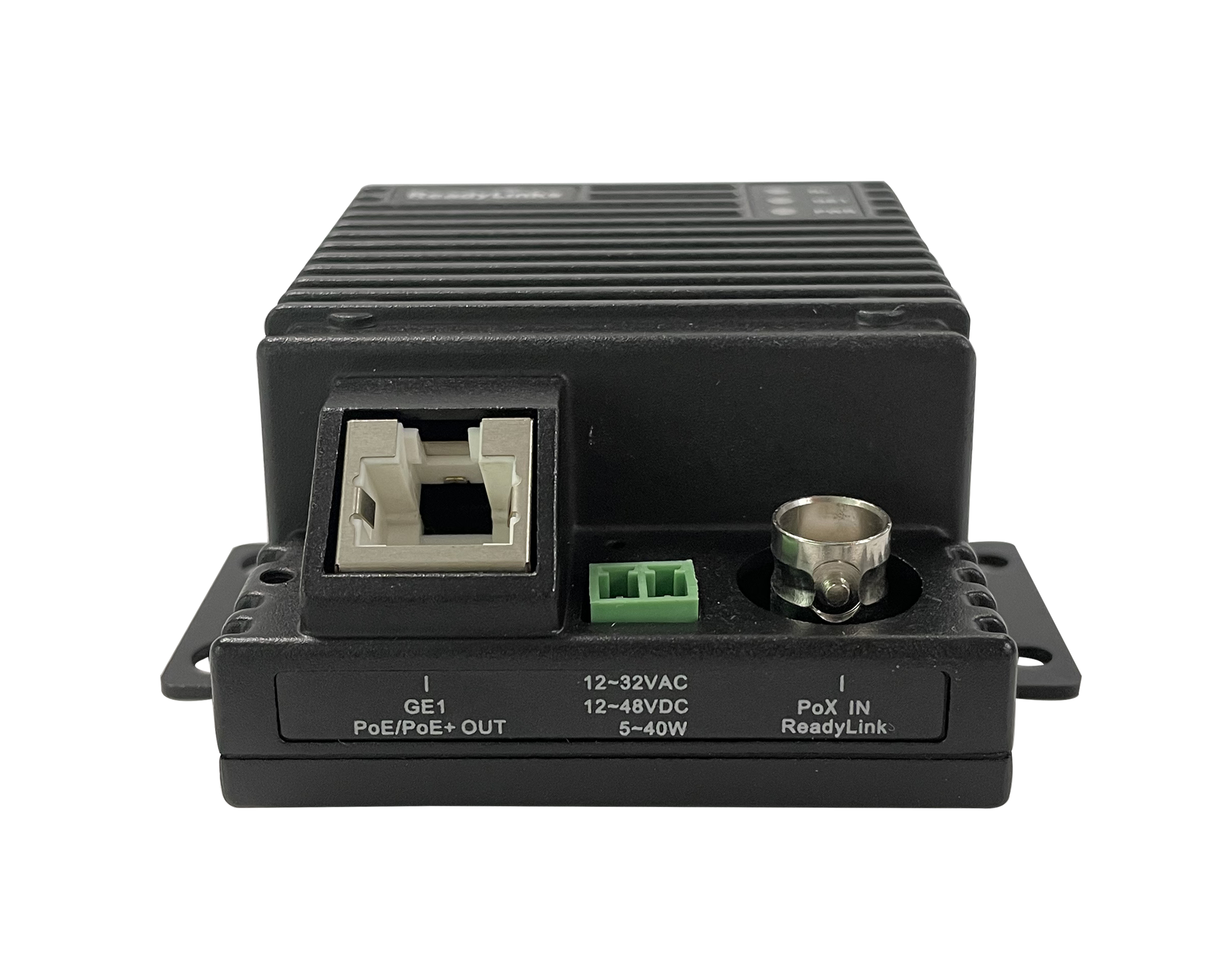

| IPC-4STP | IPC-4SBNC | |
|---|---|---|
| Cable medium | Twisted pair | Coax |
| ReadyLink port | Phoenix | BNC |
| 1GbE RJ45 | 1 | 1 |
| PoE/PoE+ options | PoE+ | PoE+ |
| Mount type | 4S backbox, wall | 4S backbox, wall |
| Applications | IP Surveillance | IP Surveillance |
#Hardware configuration
| IPC-4S | |
|---|---|
| Interfaces | 1 x 2G ITU-T G.hn IEEE 802.3at PoE+ PD Phoenix 4 pin or BNC; 1 x 2 pin phoenix local power 12~32VAC, 12~48VDC, 5~40W; 1 x 10M/100M/1G IEEE 802.3at PoE+ PSE (30W) |
| Power | 1 x 2G ITU-T G.hn IEEE 802.3at PoE+ PD Phoenix 4 pin or BNC; 1 x 2 pin phoenix local power 12~32VAC, 12~48VDC, 5~40W |
| Power consumption | 3W |
| Dimensions | 3.0”(L) x 2.2”(W) x 1.4”(H) |
| Operating temperature | 14 ~ 131 °F |
| Cooling | Fanless heatsink |
#ReadyLink ports
- Fast Fourier Transform (FFT) Orthogonal Frequency-Division Multiplexing (OFDM) in 4-200MHz offers 2Gbps bit rate and PoE+ over 2-6 conductors.
- LDPC, FEC line condition adaptive
- ~40dB of attenuation in the frequency range 4-200MHz
#Configuration
By default, the IPC-4S acts as a transparent bridge, simply passing traffic to and from the connected ReadyLink switchport. However, each IPC-4S is capable of advanced switching capabilities such as VLAN tagging, IGMP snooping, rate limits, etc.
For the recommended staging process before installation, see Deployment and staging in the IPC clients guide.
