GLx installation guide

#About this guide

This guide provides instruction on how to install and configure your GLx series switch. This guide also provides mounting instructions and limited troubleshooting procedures. For more switch installation guides, refer to the installation guides section of the documentation.

#Product overview

#Physical specifications

#Product view and physical features

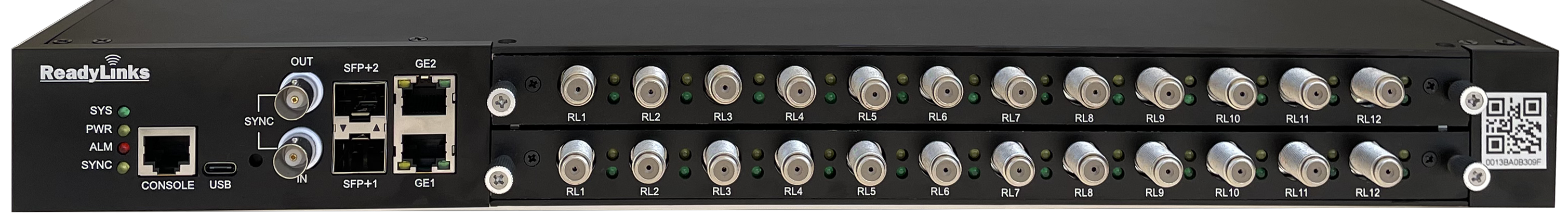

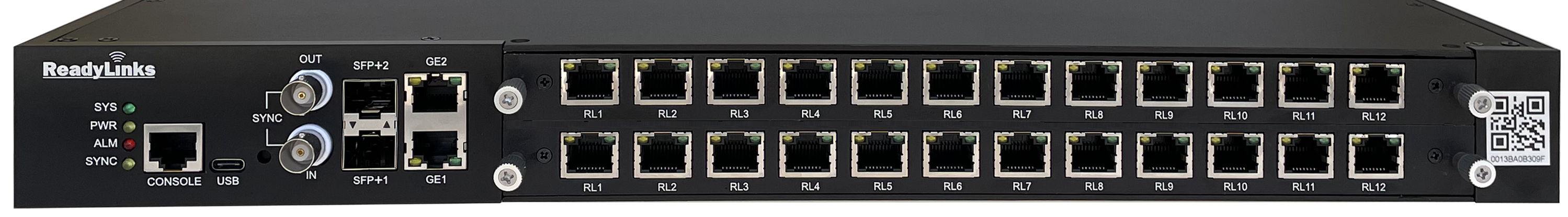

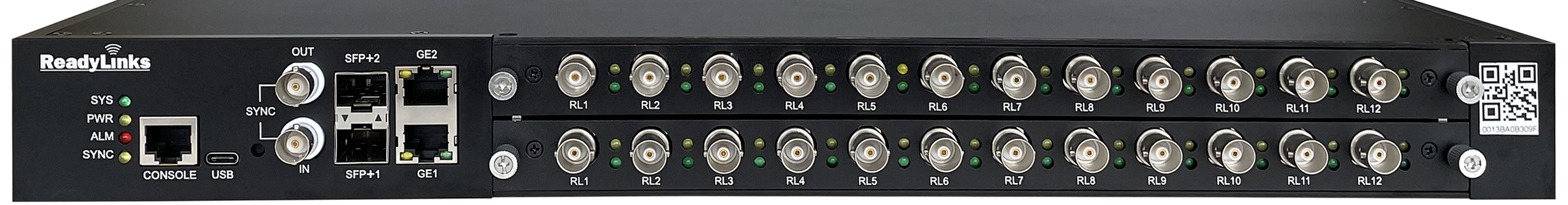

#Front panel

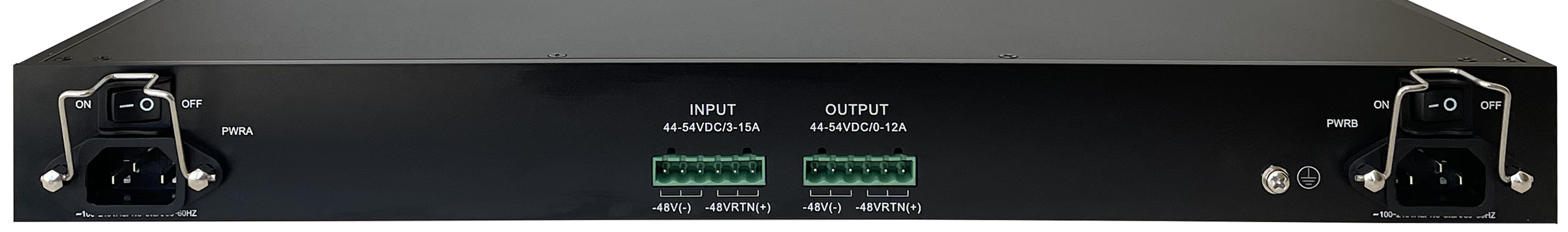

#Back panel

#Factory reset button

If the button is pressed and held for at least ten seconds and then released, the switch will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit.

#Port and status LEDs

#Package contents

• 1U rack wings & screws
• BNC sync cable
• 2 * AC power cords
• Rack screws

#Pre-install preparation

You should complete the following steps before going on-site to perform an installation.

#Configure your dashboard network

1. Log in to https://ui.readylinks.io. If this is your first time, create a new account.
2. Claim your switches. You will need your ReadyLinks MAC address (found on the device), which looks like 0013xxxxxxxx.
3. Find the network to which you plan to add your switches or create a new network.
4. Go to the map view and place each switch on the map by clicking and dragging it to the location where you plan to mount it.

#Check and configure firewall

If a firewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most current list of outbound ports and IP addresses for your particular organization can be found on the firewall configuration page in your dashboard. See also firewall rules.

#Assign an IP address

All switches must be assigned routable IP addresses to be managed by ReadyView. These IP addresses can be dynamically assigned via DHCP or statically assigned.

#Dynamic assignment

When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address belonging to a ReadyLinks switch. Other features of the network, such as 802.1X authentication, may rely on the property that the switches have static IP addresses.

GL-24xT-P600D# configure terminal
GL-24xT-P600D(config)# interface vlan 10
GL-24xT-P600D(vlan-interface10)# ip address dhcp
GL-24xT-P600D(vlan-interface10)# end
GL-24xT-P600D(config)# vlan 10
GL-24xT-P600D(vlan10)# switchport tagged ethernet RJ45/G1
GL-24xT-P600D(vlan10)# end
GL-24xT-P600D(config)# management mode vlan 10
GL-24xT-P600D(config)# end
GL-24xT-P600D# show vlan int

#Static assignment

Static IPs are assigned using the local web server on each switch. The following procedure describes how to set the static IP:

1. Using a client machine (e.g., a laptop), connect to the switch over a wired connection.
2. Using a web browser on the client machine, access the switch locally via serial.
3. Enter the VLAN interface for management.
4. Configure the static IP address, net mask, gateway IP address and DNS servers that this switch will use on its management connection.
5. If necessary, reconnect the switch to the LAN.

GL-24xT-P600D# configure terminal
GL-24xT-P600D(config)# interface vlan 10
GL-24xT-P600D(vlan-interface10)# ip address 10.10.0.10 255.255.255.0 10.10.0.1
GL-24xT-P600D(vlan-interface10)# end
GL-24xT-P600D(config)# vlan 10
GL-24xT-P600D(vlan10)# switchport tagged ethernet RJ45/G1
GL-24xT-P600D(vlan10)# end
GL-24xT-P600D(config)# management mode vlan 10
GL-24xT-P600D(config)# end
GL-24xT-P600D# show vlan int

#Removing the default interface

GL-24xT-P600D# configure terminal
GL-24xT-P600D(config)# interface vlan 1
GL-24xT-P600D(vlan-interface10)# no ip address

#Installation instructions

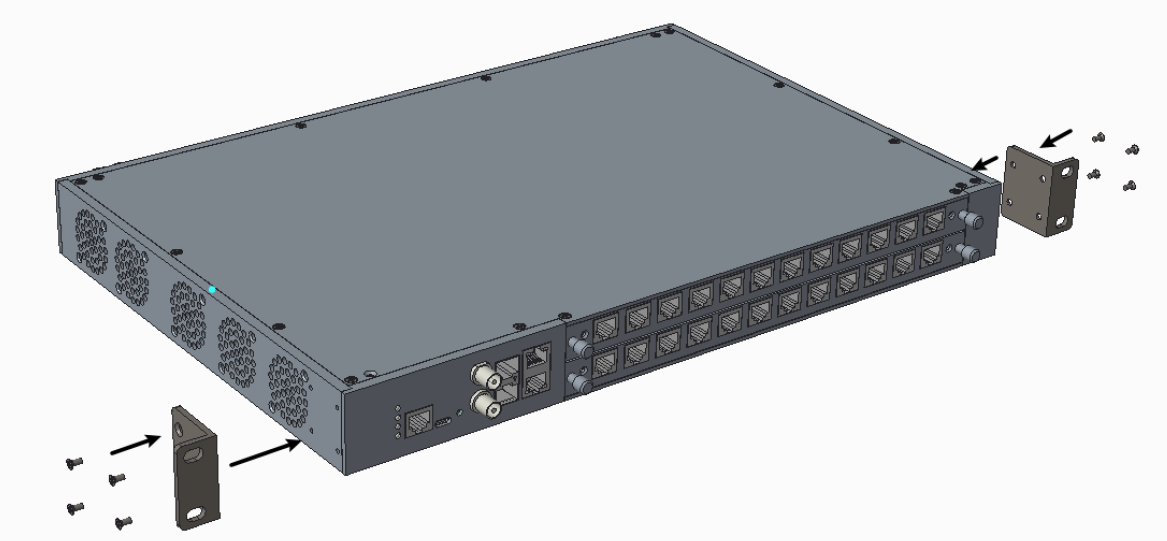

1. Fix the brackets on the side of the device using 8 * M3 flat head screws.

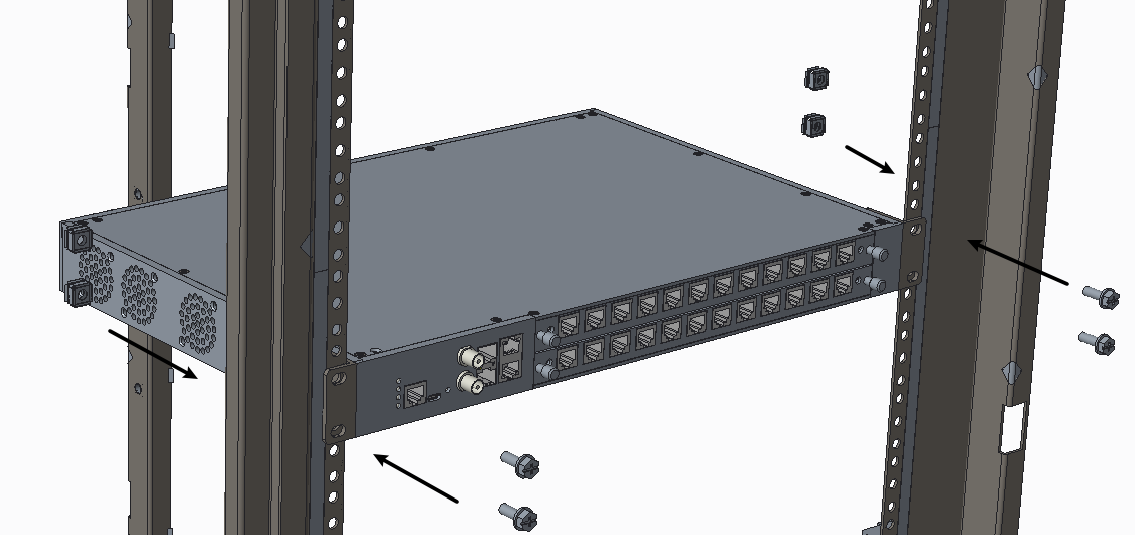

2. Install the GLx chassis in a 19" rack with M6 screws and nuts.
3. Connect the power supply to the unit.

#Wiring instructions

Refer to the twisted pair or coax sections of the wiring instructions guide for details on how to connect your ReadyLink devices.

#Mounting hardware

The mounting hardware includes a rack mount kit for standard 1U racks. When installing the device, make sure that there is sufficient space between the rear of the rack and other obstacles to ensure adequate airflow.

#Basic troubleshooting

The following steps can be used for troubleshooting basic connectivity issues with your switch.

• Reset the switch
• Factory reset the switch by holding the factory reset button for 10 seconds
• Try switching cables, or testing your cable on another device

#Warranty

#Warranties, returns (RMAs)

ReadyLinks Inc. products come with a default 1 Year Hardware Warranty against defects in materials and workmanship when used normally. Causes of performance issues that are beyond the reasonable control of Supplier or excluded under the ReadyLinks limited warranty are not included in the scope of the warranty. If your ReadyLinks device fails and the problem cannot be resolved by on-site troubleshooting, contact Partner for troubleshooting assistance. Once Partner determines that the device hardware is in a failed state, they can process an RMA and send out a replacement device. In most circumstances, the RMA will include a pre-paid shipping label so the faulty equipment can be returned.

#Returns (RMA) limitations

RMAs may only be requested by Client Administrators (Read Only or Full Access to Core Services). Supplier will not process RMAs unless the Partner can verify the Client has sufficient network permissions. Non-cancellable orders are not eligible for RMA credit and are not eligible for an RMA exception.
